缓存服务器性能数据采集（以 redis 为例）

缓存服务器性能数据采集（以 redis 为例）

Kafka & Kafka Exporter

• wget https://downloads.apache.org/zookeeper/zookeeper-3.7.2/apache-zookeeper-3.7.2-bin.tar.gz
• Wget https://mirrors.tuna.tsinghua.edu.cn/apache/kafka/3.5.2/kafka-3.5.2-src.tgz

• ./kafka-server-start.sh-daemon../confg/server.properties

• Zookeeper./zkClish-server localhost:2181
• ./zkCli.sh-scrver localhost:2181

• ./kafka-topics.sh --create --zookeeper localhost:2181 --replication-factor 1 --partitions 1 --topic test
• ./kafka-console-producer.sh --broker-list localhost:9092 --topic test

• bin/kafka:producer:perf-test.sh --topic test --num-records 1000 --record-size 1000 --throughput 200 --producer-props bootstrap.servers=172.0.0.1:9092
• /kafka-consumer-perf-test.sh --broker-list 172.0.0.1:9092 --topic test --fetch-size 1048576 --messages 1000 --threads 1

• Wget https://github.com/danielqsj/kafka_exporter/releases/download/v1.2.0/kafka_exporter-1.2.0.linux-amd64.tar.gz

• tar -zxwf kafka_exporter-1.2.0.linux.amd64.tar.gz
• cd kafka_exporter-1.2.0.linux-amd64
• ./kafka_exporter --kafka.seryer=kafkaIP或者城名:9092&

• docker pull danielgsi/kafka-exporter:latent
• docker run -ti --rm -p 9308:9308 daniclqsj/kafka-exporter --kafka.server=localhost:9092

• -job_name: 'kafka_experter'
• static_confgs:
• -targets: ['localhost:9308']

• DashBoard 7589
• https://grafana.com/grafana/dashboards/7589

Redis_Exporter 安装

• docker run -d --name redis -p 6379:6379 redis
• docker run -id --name redis-exporter -p 9121:9121 oliver006/redis_exporter --redis.addr redis://192.168.31.154:6379

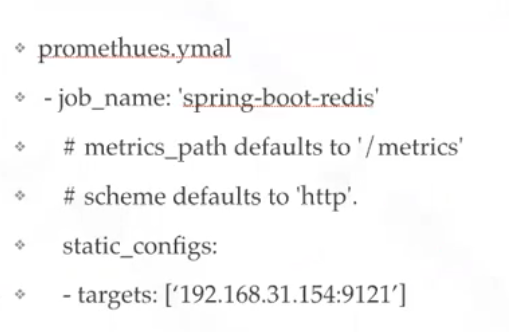

promethuse.ymal
- job_name:'spring-boot-redis'
# metrics_path defaults to '/metrics'
# scheme defaults to 'http'.
static_configs:
- targets:['192.168.1.154:9121']

Grafana DashBoard

https://grafana.com/grafana/dashboards/4074 https://grafana.com/grafana/dashboards/2751
